RopeLab Quiz 2: Tripods & Forcess

This quiz presents a series of short questions looking at the forces in a range of tripod configurations.

For all questions assume that the system is static.  In other words, nothing is moving, tensioned ropes are shown as straight, non-tensioned ropes are shown with slack, and ropes in winches are locked off.
TechRescue Tripod

All of the images in this quiz have been created using vRigger (see http://www.vRigger.com for details).

© Richard Delaney, RopeLab 2015.

1. Question: Confined space tripod 1Identify which option best represents the "resultant" force acting on the head of the tripod:
Tripods-1
2. Question: Confined space tripod 2

Identify which option best represents the "resultant" force acting on the head of the tripod:

(note: the system is static and the rope is locked off on the winch)
Tripods-2

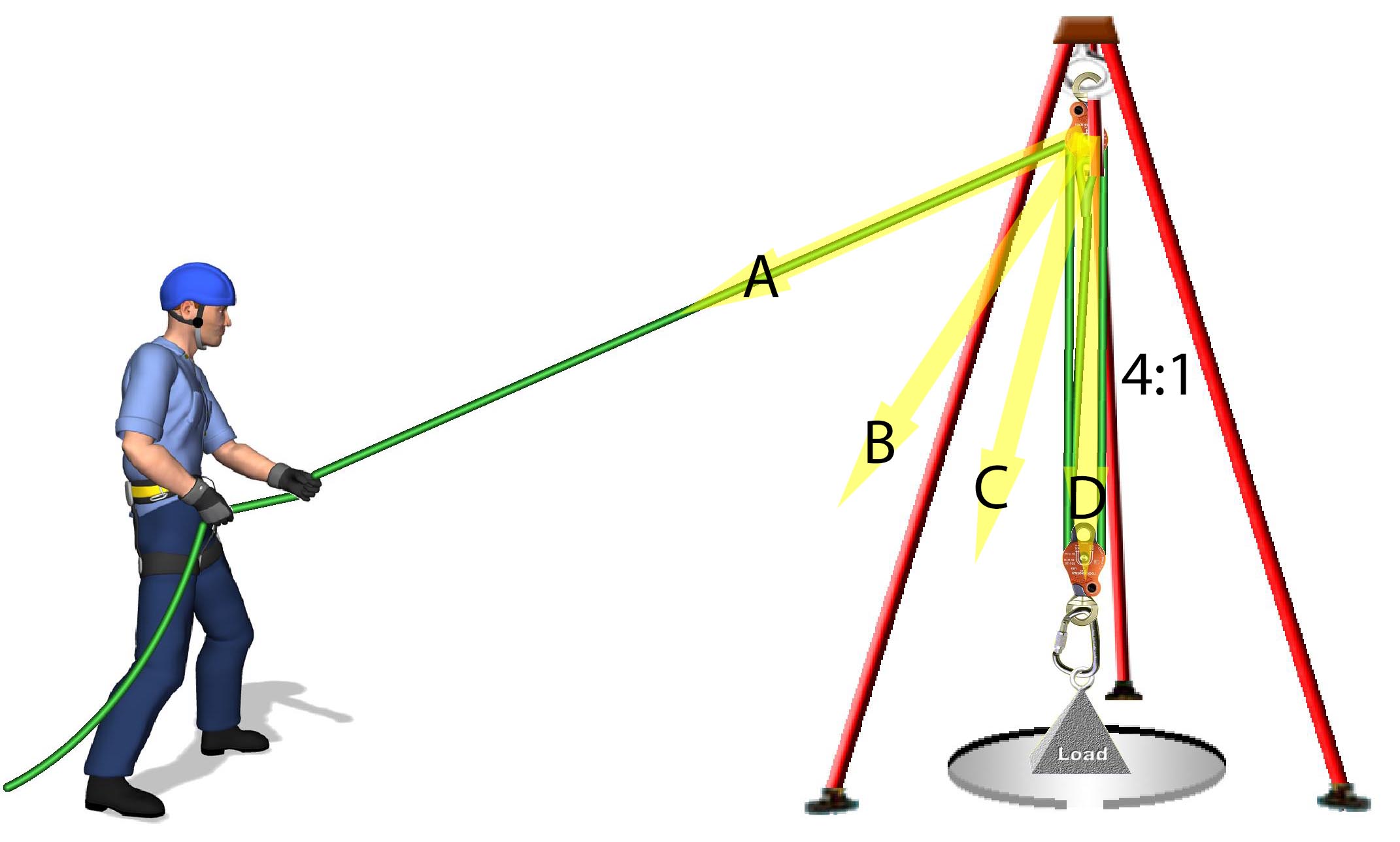

3. Question: Confined space tripod 3Identify which option best represents the "resultant" force acting on the head of the tripod:
Tripods-3

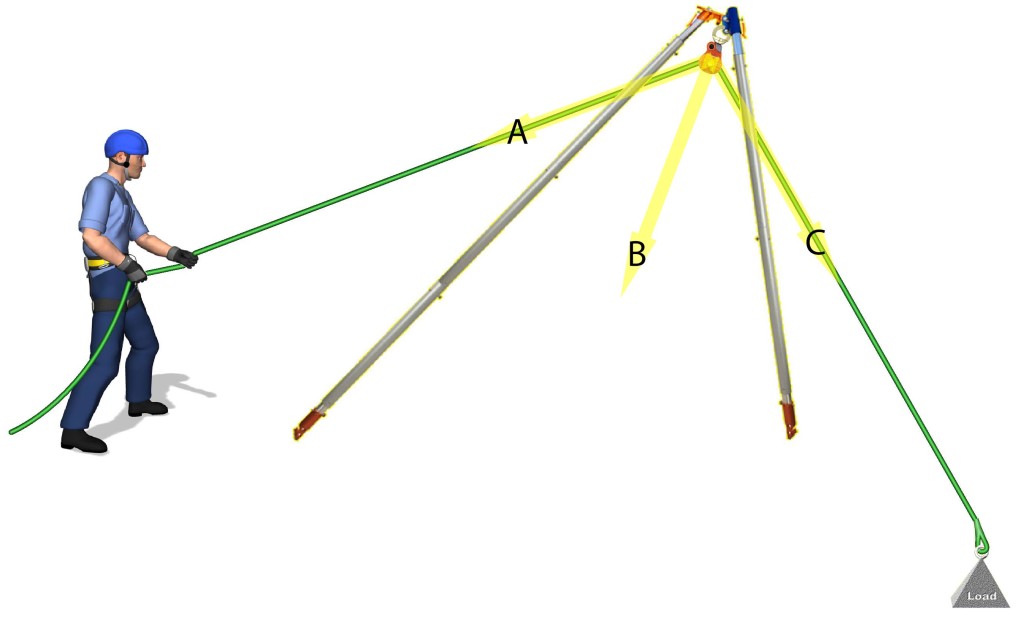

4. Question: Rescue tripod 1Identify which option best represents the "resultant" force acting on the head of the tripod:
Tripods-4
5. Question: Rescue tripod 2

Identify which option best represents the "resultant" force acting on the head of the tripod:

(note: the system is static and the rope is locked off on the winch)
Tripods-5

6. Question: Rescue tripod 3Identify which option best represents the "resultant" force acting on the head of the tripod:
Tripods-6
